230 x 90 x 32KG Parallel Flange Channels - BSEN10025-2 S275JR
The heavier your order, the heavier the savings!
Don't just buy steel—buy smart with our Bulk Sale! You can achieve up to 25% off your entire steel order when you reach the 2000kg tier (with discounts starting at 300kg). It's simple: the heavier your order, the heavier the savings. Stop settling for less than 25% off your essential materials. This is a limited-time opportunity—start loading your basket now!
Discount Applied in Checkout
LHPFC-230-90-32-S355
Available
Bulk discounts available:
Buy 6 or more metres at £57.96 per metre
check delivery cost
login to save
ask a questionProduct Specifications
Product Description

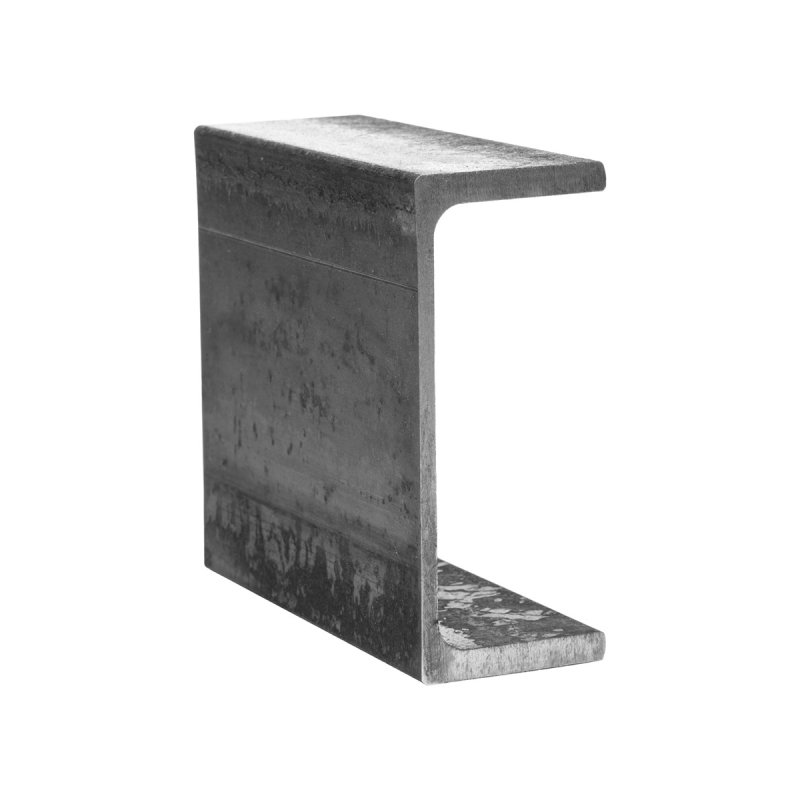

The 230 x 90 x 32KG Parallel Flange Channel is a highly versatile structural steel component, ideal for a wide range of load-bearing applications. Manufactured to BSEN10025-2 S275JR standards, this robust section offers excellent strength, reliability, and weldability, making it well-suited for use across commercial, industrial and residential construction projects.
This steel parallel flange channel features parallel internal and external flange faces, enabling secure and simple connections to other materials. Thanks to its consistent geometry and dependable structural performance, the 230 x 90 x 32KG channel is frequently chosen for frameworks, floor supports, lintels and more.
Made from S275JR structural steel, this parallel flanged channel provides strong resistance to wear and corrosion while remaining low-maintenance and easy to fabricate on-site.
Product features
- Dimensions: 230mm x 90mm
- Weight: 32kg per metre
- Steel grade: BSEN10025-2 S275JR
- Parallel flange design for easy integration
- Weldable and machinable
- Strong corrosion and impact resistance
- Available in standard or cut-to-length options
Common uses
- Structural steel frameworks and supports
- Floor beam systems and mezzanines
- Lintels over door and window openings
- Platforms and walkways
- Infrastructure and civil engineering works
- General fabrication requiring horizontal strength
FAQ
What does ?230 x 90 x 32KG? refer to in this parallel flange channel?
These measurements refer to the channel?s height (230mm), flange width (90mm), and weight per metre (32kg). This sizing makes it ideal for medium to heavy-duty structural support applications.
What is the difference between a parallel flange channel and a traditional channel?
A parallel flange channel has uniform flange thickness across its length, making it easier to connect and align. Traditional channels often have tapered flanges, which can complicate fabrication and reduce load efficiency.
Is this channel suitable for welding and cutting on-site?
Yes. The S275JR steel grade offers excellent weldability and workability, allowing it to be safely and easily fabricated as needed on-site.
Can I use this product outdoors or in exposed environments?
While S275JR offers a base level of corrosion resistance, we recommend galvanising or painting the section for outdoor use to ensure long-term durability.
Is this steel parallel flange channel available in custom lengths?
Yes. At BM Steel, we can provide cut-to-length services based on your project requirements. Please get in touch with our team for a quote.
