Eazy Roof - Intermediate Support Upright
Save 5% on the BM Steel App
The BM Steel App is here to make your shopping experience even better!
This month we are offering BM Steel App users an exclusive 5% off your entire purchase. The discount will be added automatically at checkout.
Download the app today
*Not Including Tools & Workwear.
*Not Including Ecoscape products.
MHFHR-11102.GA
Available
check delivery cost
login to save
ask a questionProduct Description

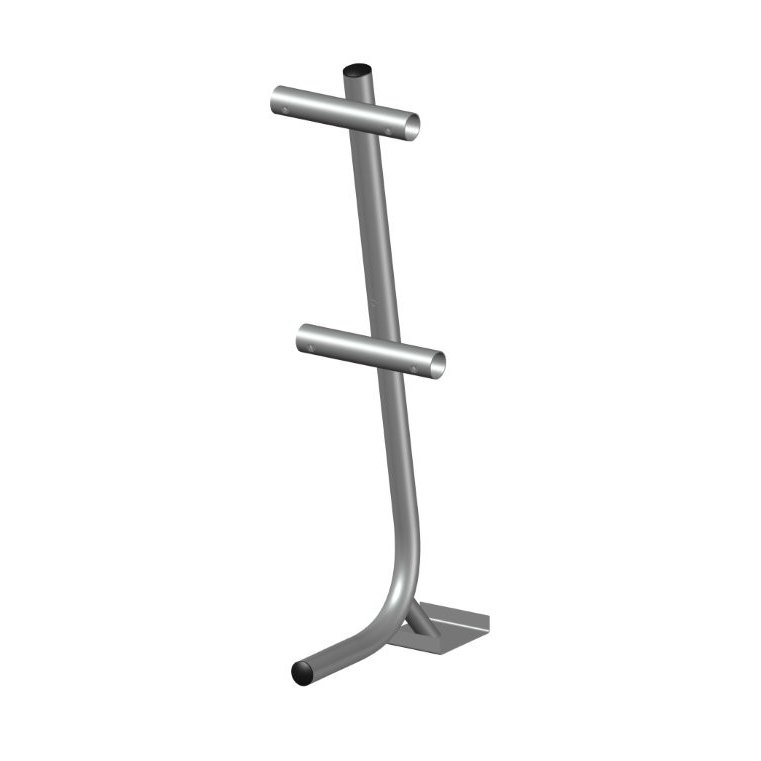

The Intermediate Support Upright is used in the 'Eazy Roof' Freestanding Roof Edge Protection System to provide support for the Cross Rails between Main Support Uprights. It comes with an adjustable 'Top Riser' unit allowing the overall height to vary between 1m and 1.3m while allowing the top and middle rails to be evenly spaced at 500mm. The distance from the back of the foot and the front is 510mm. Made from 2mm x 48.30mm mild steel tube, it has a hot dipped galvanised coating. Key Features: Anti-slip rubber matting under back foot Supplied with height adjustable Top Riser Corrosion-resistant, ideal for long-term external exposure.
Key features
- Mid-span upright for maintaining alignment in the Eazy Roof guardrail system
- Compatible with Eazy Roof bases, rails and fixings for straightforward assembly
- Corrosion-resistant for external use and long service life
- Adjustable to compensate for roof falls and site variations
- Supports non-penetrative or fixed-base installations depending on requirements
Common applications
- Edge protection around flat or low-pitch roofs
- Guardrails on plant decks, air handling unit (AHU) areas, and rooftop service zones
- Walkways around fragile roof features such as skylights or rooflights
- Permanent or temporary guardrails for safe maintenance access
Supplied as
Intermediate Upright with connection points for handrails (bases, rails, fixings, and counterweights supplied separately)
FAQ
What is the role of the intermediate upright in the Eazy Roof system?
The intermediate upright provides continuous support along straight runs between corner and end uprights. Without it, guardrails could sag or become unstable over longer spans. By holding the rails firmly in place, the upright helps ensure compliance with edge protection regulations and keeps the system safe for long-term use.
Do I need to drill into the roof to install this upright?
Not necessarily. The Eazy Roof system offers both non-penetrative and fixed-base options. The non-penetrative version uses counterbalanced bases, meaning you don?t need to drill into the roof membrane, which reduces the risk of leaks. For situations where structural fixing is required, such as exposed or high-wind environments, fixed-base uprights can be installed securely into the roof structure
Can the upright be adjusted after installation?
Yes. The intermediate uprights are designed with adjustability to accommodate minor variations in roof surfaces. Installers can make adjustments during or after installation to ensure the handrails remain perfectly level and aligned, even where the roof has a fall or uneven areas. This makes the system more versatile and easier to install correctly.
Is it suitable for pitched or curved roofs?
The standard intermediate upright is intended for flat and low-pitch roofs up to a defined gradient. For pitched or curved roof applications, project-specific engineering assessments may be required to adapt the system. BM Steel can advise on alternative configurations or custom solutions if your project falls outside the standard specification.
What finish is supplied?
All Eazy Roof uprights are manufactured with a weather-resistant galvanised or powder-coated finish (depending on system choice). This ensures they withstand exposure to rain, UV, and airborne pollutants, providing long-term durability with minimal maintenance. The finish also ensures visual consistency across the guardrail system, making it suitable for commercial and industrial settings where appearance is important
