BM Architectural Infrared Sensitive Push Button

Infrared Sensitive Push Button

BMTTS-IR

available Available (allow 4 days for delivery)

Please enter your postcode to check available services:

Check available services

£72.84 inc VAT

Show prices ex VAT

up
down
Product Specifications
Height
92
Length
51mm
Material
Aluminium
Style
Infrared
Width
27
Product Description

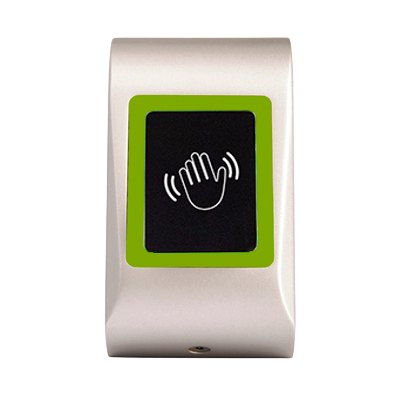

The MTT-IR request to exit with infra-red technology provides contactless features allowing relay activation by hand's waving.

The contactless feature reduces usual situations when a user normally needs to be physically in contact with the device therefore greatly helps against the spread of germs on surfaces and protect our health.

Mounting: SurfaceHousing: ABSColours: SilverResin potted electronic: YesTechnology: InfraredTouch plate: AcrylicRelay output: NO/NC, 24V AC/DC, 1ARelay time: Pulse and latch modeVisible signal: Red LED: Stand byGreen LED: relay operationExternally controlled LED: Red, green and orangeAudible signal: BuzzerWiring: Terminal blocksVoltage: 12-24V DC; 15-24V ACConsumption: <50 mA

 MECHANICAL CHARACTERISTICSIP rating: IP65Dimensions (L x H x W): 51 x 92 x 27 mmWeight: ~0.15 kgOperating temperature: -20ºC to 50ºCOperating humidity: 0-95% non-condensing
