B+M Mortise Electromagnetic Locking - 3000N - 12/24VDC - IGEM 2

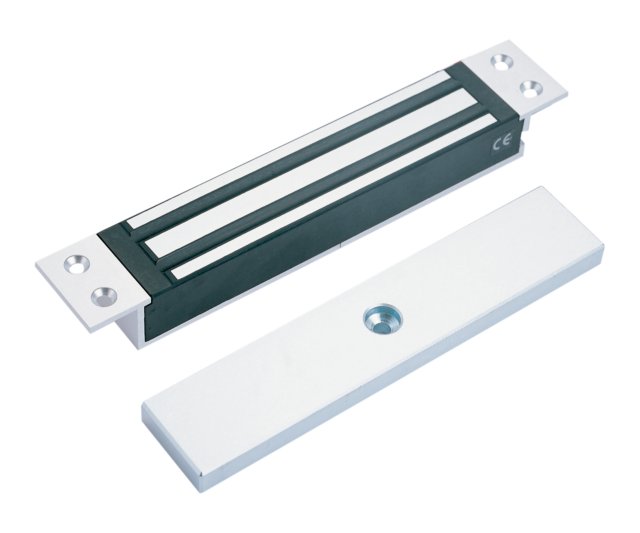

Mortise Electromagnetic Locking - 3000N - 12/24VDC - IGEM 2

IGEM 2

available Available (allow 4 days for delivery)

Please enter your postcode to check available services:

Check available services

£74.38 inc VAT

Show prices ex VAT

up
down
download pdf files
Downloads
Close
Name
Size
Download
IGEM Wiring & Manual
6757 KB
Download
IGEM 2 Datasheet
3171 KB
Download
Product Specifications
Fixing
Mortise
Height
39
Length
188mm
Voltage
12/24VDC - 500/250mA
Width
27
Product Description

The IGEM 2 electromagnets can be installed embedded style on all types of doors, both indoors and outdoors, thanks to a unique corrosion-proof treatment and its IP43 protection rating.

Like all our electromagnets, the IGEM 2 complies with the requirements of EN 13637.

All our electromagnets are checked in our factory at the end of the manufacturing process. Moreover, the holding force of the IGEM 2 has been tested by independent European laboratories. In the 3000N category, the IGEM 2 is the best “grade 3+” product on the market.

IGEM electromagnets benefit from certified corrosion-proof treatment and unmatched quality. They have passed the salt spray test (ISO 9227, ASTM B 117-90). Following this test, IGEM electromagnets keep all their attributes and lose no more than 10%, on average, of their efficiency (compared to up to 70% for some of our competitors).



Security/Holding Force: Grade 3+ (? 3 000N, 300kgf, 675lbf) Tol. 15%

Category of use: Grade 3 (High frequency - Public use)

Durability/reliability: Grade 9 ( > 1 000 000 cycles)

Corrosion resistance/humidity/IP protection: Grade 3 (EN 1670, EN ISO 9227)
