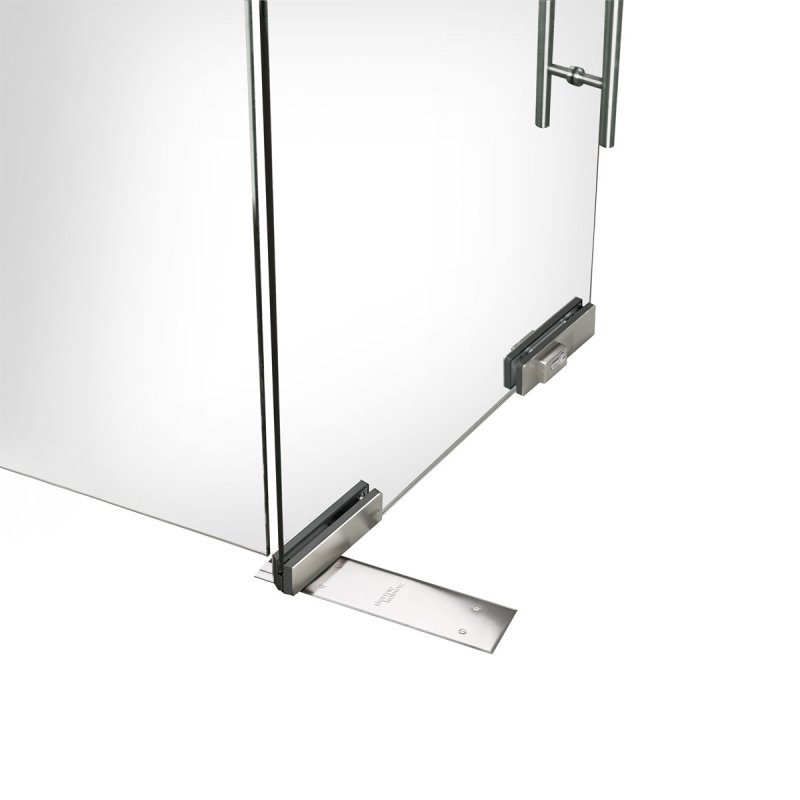

BM Architectural MUNDUS Comfort Patch Fitting & Door Closer Set to suit 8-12mm Glass - Satin Stainless

MUNDUS Comfort Patch Fitting & Door Closer Set to suit 8-12mm Glass - Satin Stainless

MAGPF-98.38.971.750.99

available Available (allow 4 days for delivery)

Please enter your postcode to check available services:

Check available services

£613.80 inc VAT

Show prices ex VAT

up
down
Product Specifications
Finish
Anodised Satin
Glass
8 to 12
Material
Stainless Steel
Style
MUNDUS
Product Description

MUNDUS fittings impress with their elegant shape, high-quality materials and careful workmanship. The fittings do without any visible connecting elements between the basic body and the caps as a design element. Thanks to their multi-dimensional adjustability, MUNDUS fittings simply fit precisely.

Advantages

  • Clear design, no visible screw-fixing of cover caps
  • Wide range of colours and materials available (enquire more details)
  • Fast installation - easy re-adjustments of the ready-installed assembly
  • Stepless adjustment to possible glass thicknesses, without changing gaskets
  • Use of laminated safety glass with the tested Clamp&Glue bonding technology for high demands on quality and safety
  • Easy to replace or retrofit in existing UNIVERSAL systems due to identical glass processing

Specifications:

  • Glass Type: TSG
  • Glass Thickness: 8-12mm (for door panels)
  • Max Door Weight: 150kg
  • Lock Application: Euro profile cylinder, round cylinder
  • Applications: Single/double leaf, sidelights, overpanels, glass assembly
  • Material: Aluminium, Stainless Steel
  • Surface: Satin Stainless
  • Specials: Multi-dimensional adjustability

Set Includes:

  • 1 x Dormakaba BTS 75 V with 90 Degree Hold Open
  • 1 x Dormakaba BTS 75V Cover Plate
  • 1 x MUNDUS Comfort PT 24
  • 1 x MUNDUS Comfort PT 10
  • 1 x MUNDUS Comfort PT 20
  • 1 x Satin Stainless Steel Pull Handle (350mm Justo)

Please see available downloads for more information.
