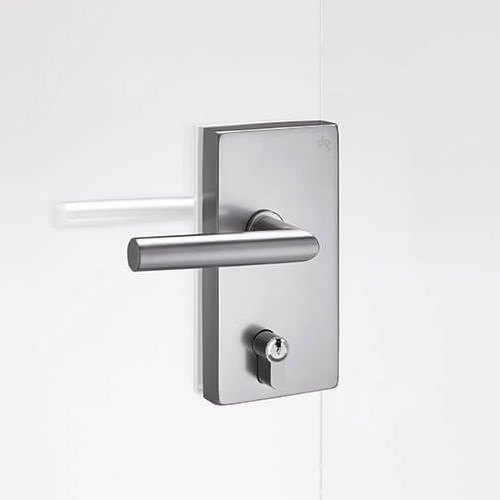

OFFICE Classic Non-Locking DIN Latch & OFFICE Classic Hinge Set

Designed for everyday use but not ordinary: The timeless modern fittings for single-action doors are available in different variations that emphasize visual features with their linearity. They are designed without compromises for heavy-duty use. Thus they are ideal for highly frequented doors.

Advantages

• Reliable during heavy use
• Long lifetime due to high-quality materials
• Whisper-comfort noise reduction for quiet door closing
• Successfully tested by a neutral testing institute with 500,000 motion cycles of the latch function and 100,000 motion cycles of the deadbolt
• According to EN 12209

Specifications:

• Glass Type: TSG
• Glass Thickness: 8mm (in frames with 24mm rebate depth), 10mm (in frames with 26mm rebate depth; with special latch on request for frames with 24mm rebate depth)
• Max Leaf Weight: Up to 80kg
• Lock Design: Non-Locking Latch
• Material: Aluminium, Stainless Steel
• Surface: Anodised Satin or Silver Finish
• Applications: 1 or 2 panels, sidelight

Set Includes:

• 1 x OFFICE Classic Schloss Non-Locking DIN Latch
• 2 x OFFICE Classic Hinges and Sleeves
• 2 x Frame Parts for Wooden Frame

Please see available downloads for more information.

This kit does not include door lever/handle.
