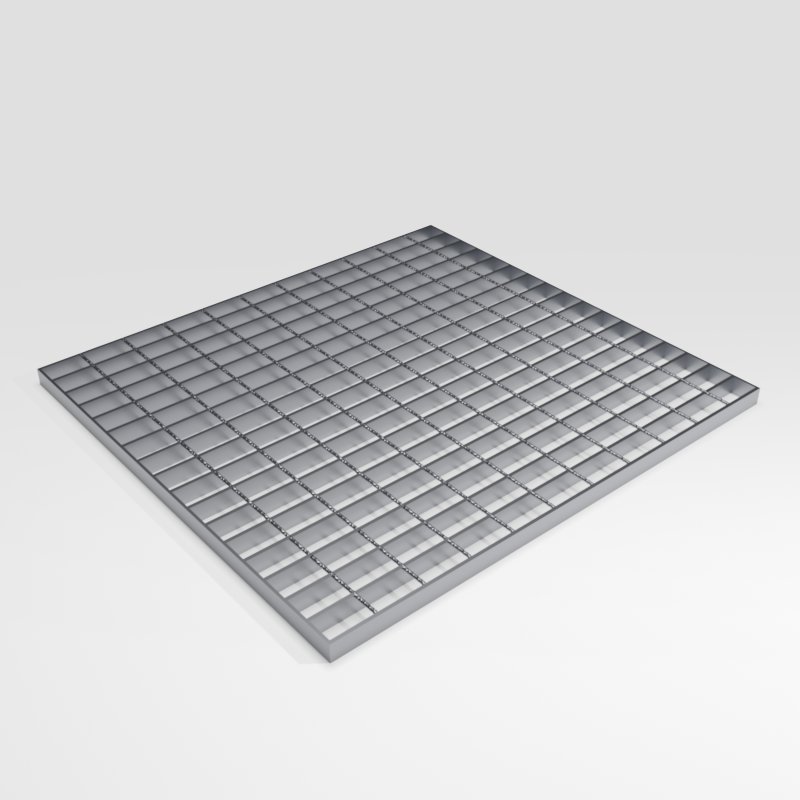

Open Steel Utility Flooring 6000mm x 1000mm (25 x 3 x 41 x 100) - Galvanised
Save 5% on the BM Steel App
The BM Steel App is here to make your shopping experience even better!
This month we are offering BM Steel App users an exclusive 5% off your entire purchase. The discount will be added automatically at checkout.
Download the app today
*Not Including Tools & Workwear.
*Not Including Ecoscape products.
MFOMP-25-3-41/100-PLA-GA
Available
download pdf filesDownloads
check delivery cost
login to save
ask a questionProduct Specifications
Product Description
The Open Steel Utility Flooring 6000mm x 1000mm (25 x 3 x 41 x 100) – Galvanised is a strong, durable, and practical solution for industrial walkways, work platforms, and service trenches. Manufactured to handle regular foot traffic and light machinery, this metal sheet flooring provides a reliable surface in both dry and wet environments.
This type of flooring consists of 25mm x 3mm load-bearing bars with a 41mm pitch, spaced at 100mm centres, making it suitable for safe walking access while still allowing drainage, ventilation, and debris fall-through. The transverse bars are 6mm square, twisted, and resistance-welded to the top of the load-bearing bars. This keeps them upright and evenly spaced during use, but they are not intended to contribute to the load-bearing strength of the panel.
Each panel measures 6000mm x 1000mm, making it an efficient choice for large-scale coverage. The galvanised finish protects the metal flooring sheets from corrosion, increasing lifespan and reducing maintenance in exposed or demanding environments such as treatment plants, engineering workshops, and warehouse flooring systems.
Where This Product Is Used
- Industrial walkways and access routes
- Work platforms in factories or warehouses
- Shallow trenches and duct covers
- Water treatment facilities and drainage areas
- Mezzanine floors and raised access points
- External areas exposed to the elements
- Public service zones requiring safe access over open spaces
This metal sheet floor provides slip resistance, durability, and minimal cleaning requirements, making it a popular choice across many sectors.
FAQ
Is this galvanised open steel flooring suitable for outdoor use?
Yes, the galvanised finish offers strong corrosion resistance, making it ideal for exposed environments, including external platforms, access ways, and wash-down areas.
What does the bar configuration 25 x 3 x 41 x 100 mean?
This refers to the load bar depth (25mm), thickness (3mm), the pitch between load bars (41mm), and the pitch between transverse bars (100mm). This configuration allows for effective drainage while ensuring structural strength and safe foot traffic.
Can the metal sheet flooring be cut to size on site?
Yes, the panels can be cut using appropriate tools such as angle grinders with metal-cutting discs. However, galvanised surfaces should be re-treated at the cut edges to prevent corrosion.
Is the transverse bar load-bearing?
No. The twisted transverse bars are included to maintain spacing and structural shape, but they do not add to the load-bearing capacity of the floor panel.
What weight can this steel utility flooring support?
The load-bearing capacity depends on span and support conditions. This profile is designed for pedestrian traffic and light wheeled equipment. For heavy loads or custom applications, consult structural loading tables or request technical guidance.
Does this product comply with UK safety regulations?
Yes, this product is manufactured to recognised UK industrial flooring standards, and the galvanised coating ensures compliance with corrosion protection requirements in most environments.
