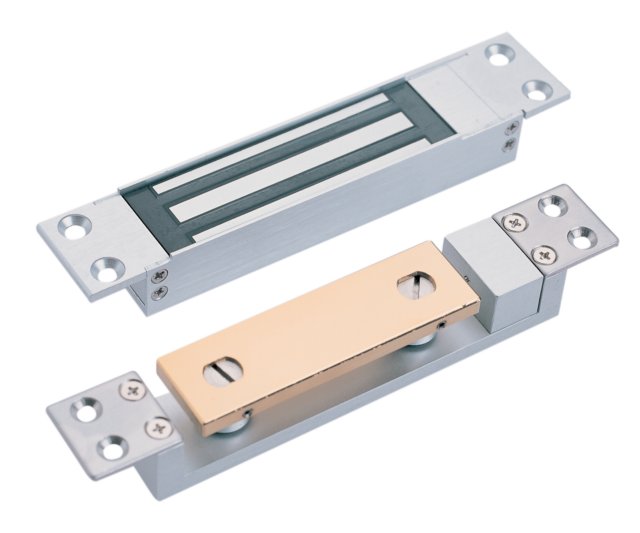

BM Architectural Shear Align Magnet Lock - 7500N - 12/24VDC

Shear Align Magnet Lock - 7500N - 12/24VDC

IGEM 2500

available Available (allow 4 days for delivery)

Please enter your postcode to check available services:

Check available services

£188.53 inc VAT

Show prices ex VAT

up
down
download pdf files
Downloads
Close
Name
Size
Download
IGEM 2500 Instructions
361 KB
Download
Product Specifications
Fixing
Mortise
Height
31
Length
129mm
Voltage
12/24 VDC - Standby
Width
19.5
Product Description

The embedded IGEM 2500 shear latch is an aesthetic locking solution using a hybrid design (electromagnet + mechanical lock) for swinging doors.

This type of electromagnet has been developed to provide a reliable solution to double-action door locking. Although this electromagnet can be installed vertically, for best results it is advisable to install it horizontally, in the upper door frame. A door and frame of very good quality are also recommended.

Operating in coordination with its channelled electronic circuit, it is self-controlled. Its hybrid technology offers break-in resistance of 750kgf (7500N). It is equipped with LSS locking control. Like the entire IGEM line, it is intrinsically guaranteed without residual magnetism and it benefits from a special treatment for high resistance to corrosion (ISO 9227 and ASTM B-117 90 certified).

Security/Holding Force: Grade 6+ (6 800N, 680kgf, 1 530lbf)

Category of use: Grade 3 (High frequency - Public use)

Durability/reliability: Grade 9 ( > 1 000 000 cycles)

Corrosion resistance/humidity/IP protection: Grade 3 (EN 1670, EN ISO 9227)
