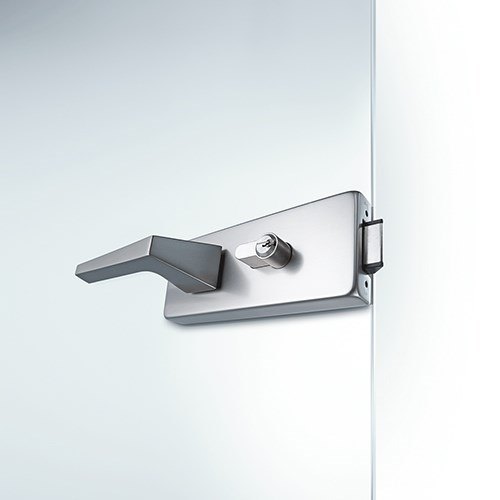

STUDIO Classic Lock Profile Cylinder & OFFICE Classic Hinge Set

The STUDIO Classic glass interior door fittings fit perfectly into an environment designed with functional aspects in mind and at the same time, emphasise the generosity of all-glass doors with their slender form.

Advantages

• Whisper-comfort noise reduction for quiet door closing
• Customisable handle position
• Spring-supported clamp nut for exact handle positioning
• Existing frames can be used
• Long Lifetime - 200,000 motion cycles of the latch function and the bolt were tested
• According to EN 12209

Specifications:

• Glass Type: TSG
• Glass Thickness: 8mm (in frames with 24mm rebate depth), 10mm (in frames with 26mm rebate depth; with special latch on request for frames with 24mm rebate depth)
• Max Leaf Weight: Up to 80kg
• Lock Design: Lock Profile Cylinder
• Material: Aluminium, Brass
• Surface: Anodised Satin or Silver Finish
• Applications: 1 or 2 panels, sidelight

Set Includes:

• 1 x STUDIO Classic Lock Profile Cylinder
• 2 x OFFICE Classic Hinges and Sleeves
• 2 x Frame Parts for Wooden Frame

Please see available downloads for more information.

This kit does not include door lever/handle
