Torpedo Self Closing Hinge - 180' Stop Glass-to-Glass
Save 5% on the BM Steel App
The BM Steel App is here to make your shopping experience even better!
This month we are offering BM Steel App users an exclusive 5% off your entire purchase. The discount will be added automatically at checkout.
Download the app today
*Not Including Tools & Workwear.
*Not Including Ecoscape products.
MAGPF-835E50RISS
Available
check delivery cost
login to save
ask a questionProduct Description

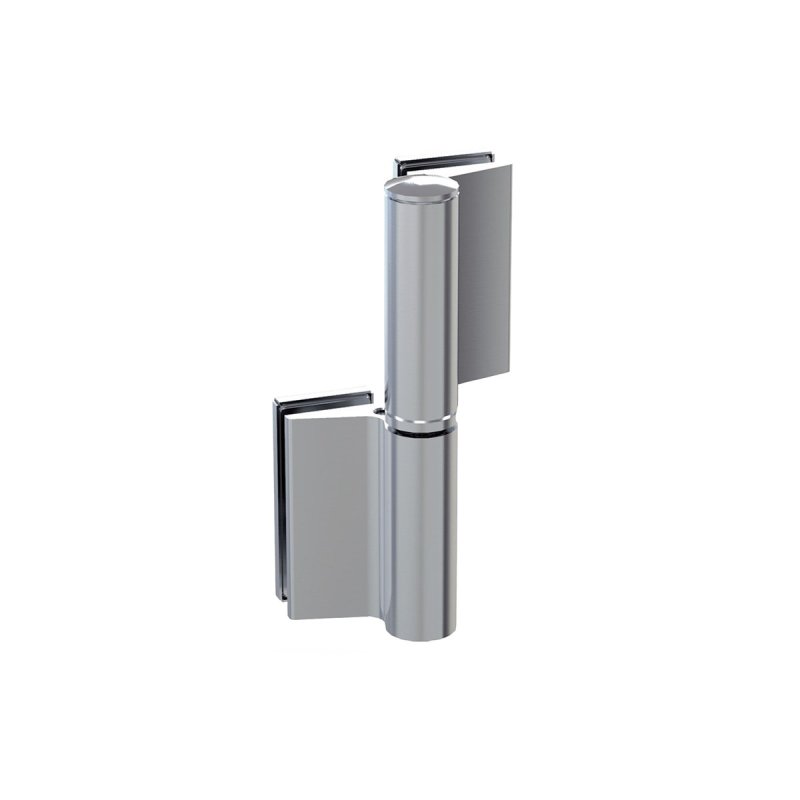

The Torpedo Self Closing Hinge – 180° Stop Glass-to-Glass is built for professional glass door installations where precision, safety, and durability are essential. These self closing glass door hinges combine hydraulic technology with adjustable braking control, allowing doors to close smoothly and securely every time.
Hydraulic hinge glass to wall for doors with stop, with adjustable closing speed and constant braking control; the door opens up to 180°. Stop at +90° +180°. Installed on doors with a profile on a stop. Jamb depth from 30 to 50mm.
Manufactured in aluminium. Recommended maximum of 2 hinges per door. Suitable for 8 - 21.52mm glass.
Maximum door weight using 2 hinges 100kg.
Maximum door width using 2 hinges 800 - 1000mm.
CHOOSE THE OPENING OPTION AS VIEWED FROM THE PULL SIDE
Key Features
- Precision-engineered glass door self closing hinges with hydraulic mechanism.
- Adjustable closing speed and constant braking control.
- Full 180° opening range with stop at +90° and +180°.
- Strong aluminium body for professional-grade durability.
- Compatible with 8–21.52mm glass panels.
- Maximum door weight: 100kg (when using 2 hinges).
- Maximum door width: 800–1000mm (with 2 hinges).
- Recommended: no more than 2 hinges per door.
Applications
- Frameless glass doors in corporate offices and reception areas.
- Retail stores and showrooms requiring high-traffic durability.
- Glass partitions and enclosures where self-closing functionality is required.
- Premium residential interiors with frameless glass door systems.
FAQ
How do these glass door self closing hinges work?
The Torpedo hinge uses a hydraulic system that automatically closes the door with adjustable speed. It also provides constant braking to prevent sudden movements, ensuring a safe and controlled closing action.
What is the maximum door size these hinges can support?
When fitted with two hinges, the system supports glass doors up to 100kg in weight and between 800?1000mm in width, making it suitable for a wide range of frameless door projects.
Which glass thicknesses are supported?
These glass-to-glass door hinges work with panels between 8mm and 21.52mm, offering flexibility for both single and laminated glass doors.
Do the hinges provide full 180? opening?
Yes. The hinges allow for full 180? opening, with built-in stops at +90? and +180?. This makes them ideal for installations requiring wider openings without losing stability.
Are these hinges recommended for commercial use?
Absolutely. The Torpedo Self Closing Hinge is designed for heavy-duty performance, making it suitable for offices, retail spaces, and high-traffic public areas, as well as luxury residential environments.
