Product Description

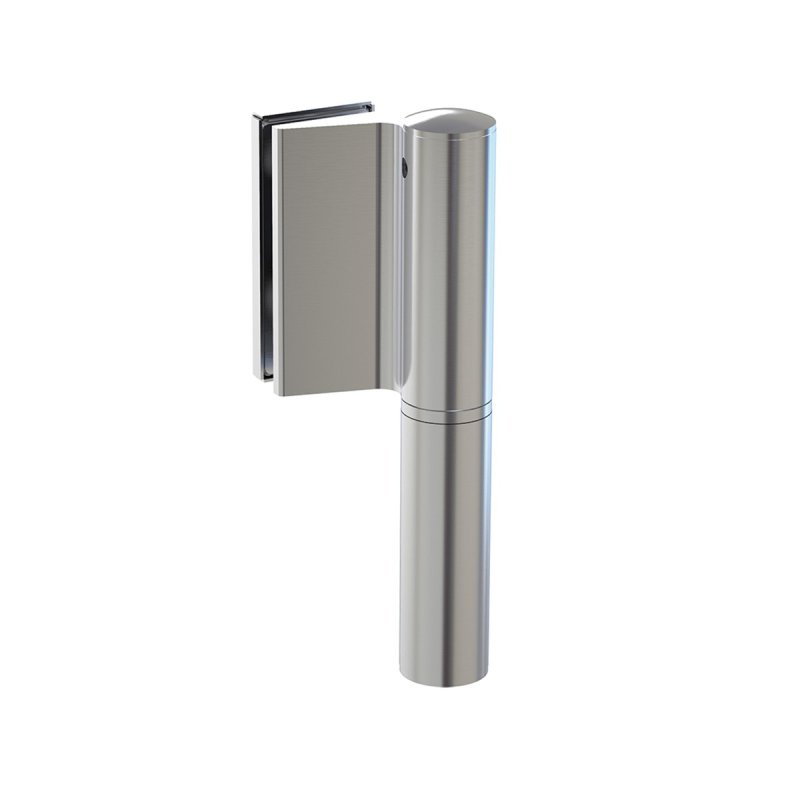

The Torpedo Self Closing Hinge – 180° Stop Glass-to-Wall is a professional-grade solution for frameless glass doors in both residential and commercial settings. Engineered with a durable aluminium body and a precision hydraulic closing system, this hinge ensures smooth, controlled movement with a reliable soft close.
With a 180° opening range and integrated stops at +90° and +180°, this hinge is ideal for modern glass installations that demand both functionality and style. Designed for glass-to-wall fixing, it provides strength and security while maintaining a clean, minimalist aesthetic.
The hinge supports glass thicknesses from 8mm up to 21.52mm, with a maximum door weight of 100kg (when fitted with two hinges). A maximum of two hinges should be used per door to guarantee safe and consistent performance.
Key Features
- Hydraulic self closing mechanism for safe, quiet operation.
- 180° opening capacity with stops at +90° and +180°.
- Built for glass-to-wall applications.
- Compatible with 8–21.52mm glass thicknesses.
- Handles door weights up to 100kg with two hinges.
- Suitable for door widths between 800–1000mm.
- Manufactured from robust aluminium for long service life.
Typical Uses
- Frameless glass partition doors in offices.
- Retail and showroom entrances requiring clean aesthetics.
- Restaurants, hotels, and leisure interiors.
- Residential properties with contemporary frameless designs.
FAQ
What is the maximum door weight the Torpedo Self Closing Hinge can support?
When fitted with two hinges, this model supports frameless glass doors up to 100kg in weight and up to 1000mm in width.
Can this hinge be used with different glass thicknesses?
Yes. It is compatible with 8mm to 21.52mm glass, making it suitable for single toughened, laminated, or heavy-duty frameless doors.
How does the hydraulic soft close mechanism work?
The hinge uses a built-in hydraulic system to control door movement, providing a smooth, quiet soft close. This reduces stress on the glass and improves user safety.
Is the hinge suitable for high-traffic areas?
Yes. Thanks to its robust aluminium construction and self closing hinge technology, it is an excellent choice for offices, commercial environments, and hospitality spaces where frequent use is expected.
How many hinges should I install per door?
We recommend a maximum of two hinges per door. This ensures safe weight distribution and optimal hydraulic performance.
