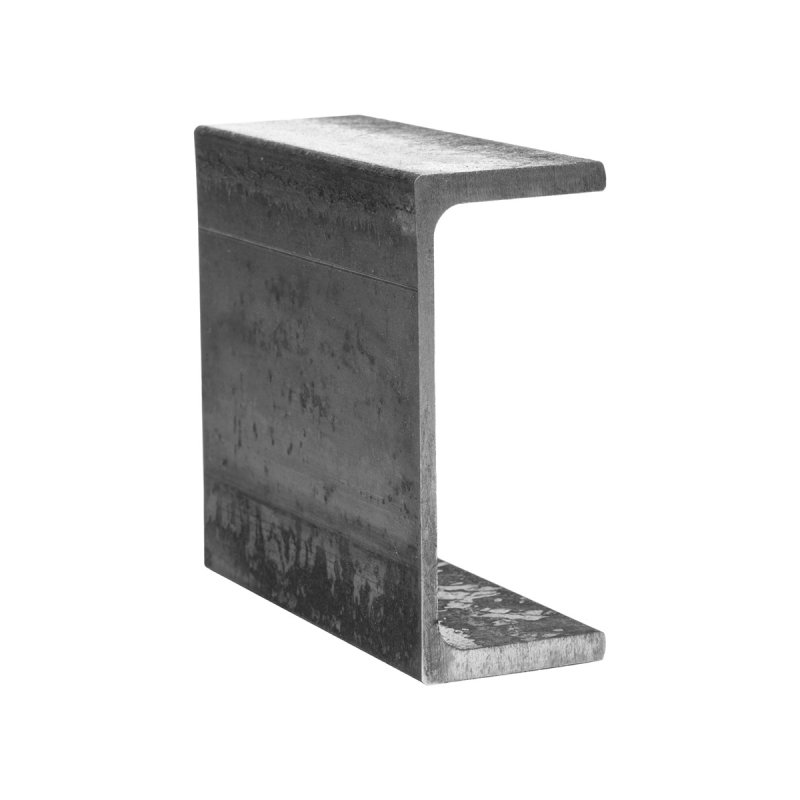

200 x 90 x 30KG Parallel Flange Channels - BSEN10025-2 S355JR
Save 5% on the BM Steel App
The BM Steel App is here to make your shopping experience even better!
This month we are offering BM Steel App users an exclusive 5% off your entire purchase. The discount will be added automatically at checkout.
Download the app today
*Not Including Tools & Workwear.
*Not Including Ecoscape products.
LHPFC-200-90-30-S355
Available
Bulk discounts available:
Buy 6 or more metres at £53.46 per metre
check delivery cost
login to save
ask a questionProduct Specifications
Product Description
The 200 x 90 x 30KG Parallel Flange Channel is a robust steel section designed for heavy-duty structural support across a wide range of commercial and industrial applications. Manufactured to BS EN 10025-2 S355JR, it provides superior strength and excellent load-bearing capabilities.
With a profile size of 200mm x 90mm and a weight of 30kg per metre, this parallel flange channel is commonly used in frameworks, platforms, bracing systems, and reinforced structural builds. Its parallel flanges allow for easier connection and bolting to flat surfaces compared to tapered channels, making it a preferred option for fabricators and engineers seeking consistency, strength, and versatility.
The 30 x 200 channel format offers excellent resistance to bending and torsion, making it ideal for use as a beam or lintel in large-scale projects. Thanks to its S355JR grade, the steel offers a higher yield strength than standard mild steel, ensuring long-lasting performance under pressure.
Key Features
- Dimensions: 200mm (height) x 90mm (width)
- Weight: 30kg per metre – suitable for heavy-duty load-bearing applications
- Material grade: S355JR – offers excellent yield strength and durability
- Parallel flanges – simplifies fixing and connection in structural builds
- Complies with BS EN 10025-2 standards – suitable for UK-regulated construction
Applications
- Structural steel frameworks in commercial buildings
- Supporting members in bridges and walkways
- Mezzanine floors and heavy machinery platforms
- Lintel beams and load-bearing wall reinforcements
- Marine and offshore steel structures
FAQ
What are the advantages of using a parallel flange channel over a tapered one?
Parallel flange channels (PFCs) offer uniform flange widths, making them easier to bolt to other structural elements. This improves alignment and connection strength, which is particularly useful in large steel assemblies.
Is the 200 x 90 x 30KG channel suitable for outdoor use?
Yes, when appropriately coated or galvanised, the S355JR steel used in this channel performs well in outdoor environments. It?s widely used in exposed structural applications such as bridges, platforms, and marine builds.
Can the channel be welded or cut to size on-site?
Absolutely. The 200 x 90 parallel flange channel can be cut, drilled, and welded using standard mild steel processing tools. For best results, cutting and welding should be done using appropriate PPE and equipment in accordance with site safety standards.
What is the approximate length of a standard supplied unit?
Standard supply lengths are typically 7.5m or 8m, but custom cuts can often be arranged. Always confirm with your supplier when ordering if a specific length is required for your project.
Is this channel section appropriate for use in mezzanine floor structures?
Yes, the 30kg/m weight and S355JR strength rating make it well-suited to carry heavy live and dead loads found in mezzanine floors, particularly in warehouse and industrial settings.
