Open Steel Utility Flooring 6000mm x 1000mm (25 x 5 x 41 x 100) - Galvanised

Save 5% on the BM Steel App

The BM Steel App is here to make your shopping experience even better!
This month we are offering BM Steel App users an exclusive 5% off your entire purchase. The discount will be added automatically at checkout.
Download the app today
*Not Including Tools & Workwear.
*Not Including Ecoscape products.



MFOMP-25-5-41/100-PLA-GA

available Available

Please enter your postcode to check available services:

Check available services

£476.40 inc VAT

Show prices ex VAT

up
down
Product Specifications
Dimensions
6000 x 1000mm
Load Bearing Bar Thickness
5mm
Load Bearing Bar Width
25mm
Load Bearing Centres
41mm
Transverse Bar Centres
100mm
Product Description

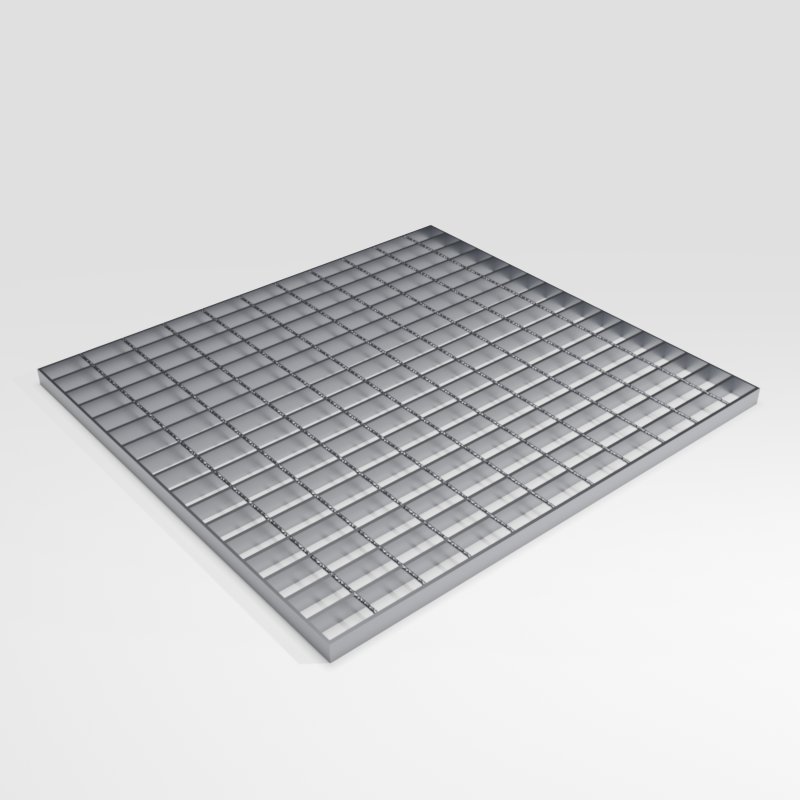

The Open Steel Utility Flooring 6000mm x 1000mm (25 x 5 x 41 x 100) – Galvanised from IMS is a robust solution for safe access in demanding industrial and commercial environments. Designed for strength and reliability, this metal flooring offers exceptional durability while maintaining a practical open mesh structure for drainage and ventilation.

Manufactured with precision, the flooring features 6mm square twisted transverse bars that are resistance-welded to maintain consistent spacing and alignment of the load-bearing bars. While the transverse bars do not add to the load-bearing strength, they secure the structure and ensure stable performance across a wide range of applications.

With a galvanised finish for long-lasting corrosion protection, this utility flooring is well suited to both indoor and outdoor projects where safety, durability, and performance are essential.

Key Features

  • Galvanised finish ensures extended resistance to corrosion.
  • Open mesh design provides drainage and ventilation, reducing build-up.
  • 6mm twisted transverse bars welded for secure alignment.
  • High strength-to-weight ratio for efficient use on-site.
  • Size: 6000mm x 1000mm, specification 25 x 5 x 41 x 100.

Typical Uses

  • Safe walkways in industrial and treatment facilities.
  • Heavy-duty working platforms in construction and utilities.
  • Covers for shallow trenches, drains, and cable runs.
  • Flooring above water channels in water treatment works.
  • Industrial flooring for factories and warehouse access areas
FAQ

What fixing methods are most effective for IMS open steel flooring?

Sheets can be installed using saddle clips for removable sections or welded directly to the supporting steelwork for permanent applications. IMS recommends selecting the fixing method based on future maintenance requirements.

What is the load-bearing performance of the 25 x 5 x 41 x 100 configuration?

The 25 x 5mm load-bearing bars, spaced at 41mm centres, are designed to handle heavy foot traffic and moderate equipment loads. Load performance will vary depending on span and support spacing, so engineers should verify against structural tables.

How long will galvanised utility flooring last in outdoor projects?

Hot-dip galvanisation provides excellent corrosion resistance. In most outdoor industrial environments, IMS galvanised flooring delivers a working life of over 20 years, provided cut edges are treated appropriately.

What span lengths are recommended for this flooring type?

The 25 x 5 bar thickness is suitable for shorter spans with regular supports. Where spans are wider, IMS advises upgrading to a heavier bar or different mesh size to maintain safety margins. .

Can the flooring be adapted on-site during installation?

Yes, IMS open steel flooring can be cut to size on-site using grinders or saws. Any modifications should be finished with zinc-rich paint to restore corrosion resistance to exposed edges.
