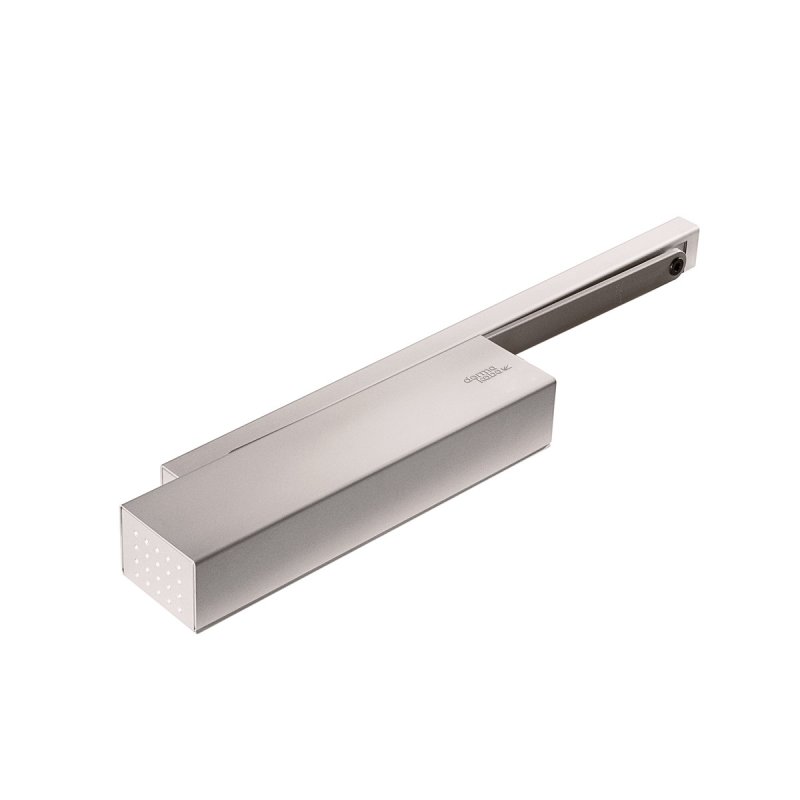

Dorma TS93B Cam Action 1600mm Door Closer Body - Pull Side - Silver
Bulk Discount

TS93B Cam Action 1600mm Door Closer Body - Pull Side - Silver


available Available (allow 4 days for delivery)

Bulk discounts available:
Buy 10 or more for £357.36 each

Please enter your postcode to check available services:

Check available services

£376.19 inc VAT

Show prices ex VAT

Product Specifications
Pull Side
Cam Action
Width Of Section
Product Description

The TS 93 cam action door closer system provides a high-quality architectural solution for all project application requirements, featuring the DORMA heart-shaped cam to ensure exceptional ease of opening.

  • Perfect solution for all applications
  • Door widths up to 1600mm
  • Adjustable power, 'thinking' backcheck and delayed action
  • Suitable for all fixing positions
  • Modular system
  • For single and double leaf doors

This particular version has a max door width of 1600mm, a spring strength of EN 5-7 (Adjustable) and is suited to be used on the pull side.


The perfect project solution for all application needs

The TS 93 cam action door closer system sets new standards in user convenience in project applications. The proven DORMA technology of the heart-shaped cam ensures exceptional ease of opening.

Modular system

The TS93 series comprises a modular system which enables just a few door closer models to be combined with a number of different slide channels to meet virtually every conceivable functional requirement. Doors of varying designs can be equipped for a wide range of different applications.

Benefits for the trade/distributor

Clear product allocation ensures use of the right models for the right applications

Identical door closer model for single and double doors

Benefits for the installer/fabricator

The TS 93 system is suitable for all fixing positions

Mounting bracket with universal fixing hole pattern for optimal fixing

Simple, fast installation

Benefits for the specifier/architect

High-quality design ensures an ideal solution for all project applications

Harmonious appearance thanks to integral smoke detector

Available in a wide range of colors and finishes

Benefits for the user

Easy opening action and fully controlled closing

Adjustable hydraulic functions for easy adaptation to each specific door situation


Finish - Silver

Spring Strength - EN 5-7 (Adjustable)

Door Type - Pull Side

Max Door Width - 1600mm

Features - Adjustable Sweep Speed, Adjustable Latching Speed, Thicking 'backcheck', Adjustable Delayed Action

Certification - CE Marked, Successful Independently Tested to BS EN 1154, ITT120 MM/IMM240
