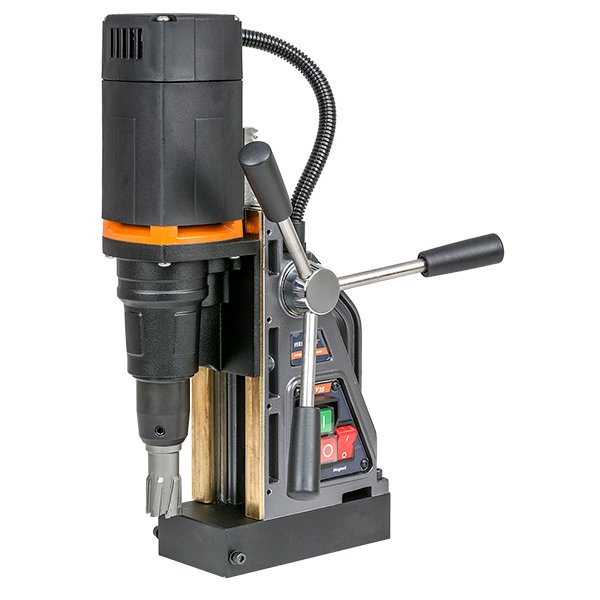

HMT V35 Versadrive Magnetic Drill Machine Kit, 110 Volt

The HMT VersaDrive V35 is the first UK Built portable drilling machine designed for high-performance, low-maintenance, industrial quality drilling up to 35mm diameter. It delivers constant performance in the most challenging drilling environments and fabrication conditions. This machine fills a gap in the market for extremely light weight, high drilling speed, and long stroke to accept a wide range of VersaDrive Tooling such as twist drills, countersinks, drillsinks, step drills and more.

With a 140mm stroke, maximum cutter length of 110mm and seamless integration with the VersaDrive® modular cutting system, it offers the most flexibility of any compact Magnet Drill on the market. Supplied with handles, heavy duty metal guard system, VersaDrive Rapid-Lock adapter, STAKIT Base 200 Case and gravity fed coolant system.

• CUTTER SIZE RANGE: 12 - 35mm
• MAX CUTTER CAPACITY: 35mm
• MAX CUTTER LENGTH: 110mm
• TWIST DRILL CAPACITY: 12mm
• COUNTERSINKING: 25mm
• REAMING: N/A
• MAX TAP CAPACITY: N/A
• LENGTH: 220mm
• WIDTH (Inc Handles): 173mm
• HEIGHT (Min-Max): 305 - 445mm
• STROKE: 140mm
• WEIGHT: 9.5kg
• MAGNET (L X W): 160 x 80mm
• MAGNETIC ADHESION: 1000kg
• MOTOR POWER: 850W
• TOTAL POWER: 900W
• SPEED RPM (No Load): 750 min-1
• SPINDLE: 3/4' Weldon
• ARBOR: Integral 3/4' Weldon (19.05mm)
• COOLANT SYSTEM: Gravity Oil Fed
• WARRANTY: 2 Year (When registered)
