Product Description

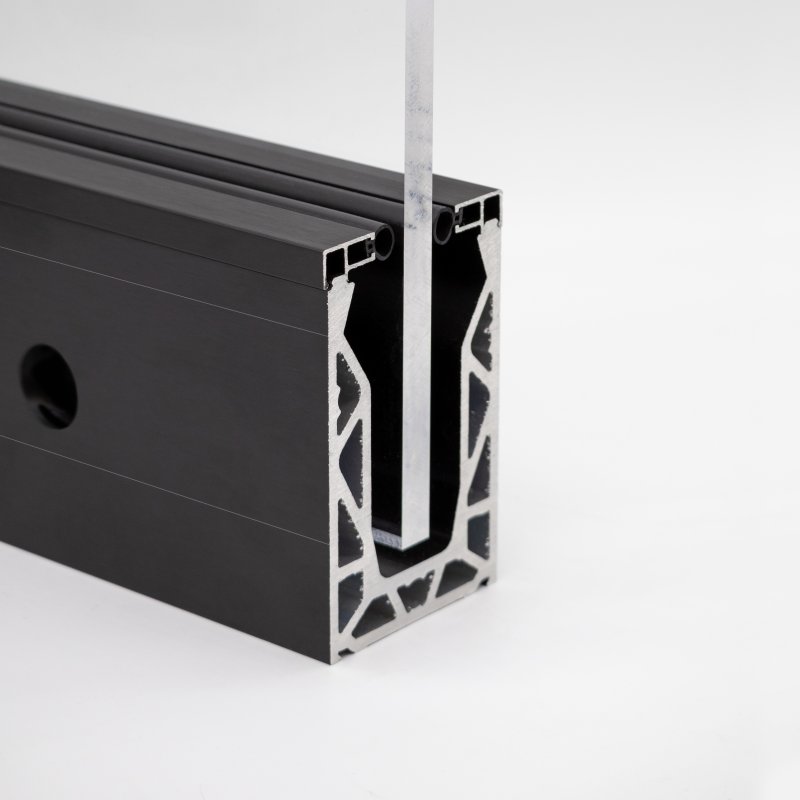

Our Eazyfit Frameless Aluminium Glass Balustrade Channel Kits hold between 12mm to 25.5mm glass panels safely in place for use on balustrades and partitions. This system, based on simplicity, allows the installer to easily adjust the glass panels once in place by adjusting the bolt screw to align the glass.
The quickest and most cost-effective frameless glass balustrade system to install. Designed to provide the greatest possible adjustment opportunities, this system enables each panel to be perfectly aligned during, or even after installation, we offer 0.36kN to 1.5kN loading weight variations.
This innovative and market-leading screw-clamp technology locks glass panels into position effortlessly, with four immobilizing fasteners per meter of the channel. Our stainless steel glass balustrades are the perfect fit for indoor and outdoor applications such as garden glass balustrades, Juliet balcony balustrades, glass balcony railings, glass stair balustrades, decking balustrades, and more. It can be glazed with toughened glass, toughened-laminated glass, or frosted glass. These kits include adjustable clamp kits, a top bead, and a spanner.
More glass thicknesses are available at higher loading weights.
Key Features
- Designed for 12mm – 25.5mm glass thickness
- Side-fix channel for installation where rear access is restricted
- Black powder-coated finish for a sleek, modern look
- Adjustable screw-clamp system for precise alignment
- Tested loading capacity from 0.36kN to 1.5kN
- Suitable for toughened, laminated, and frosted glass

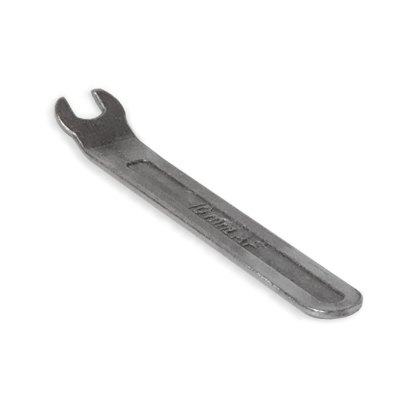

- Supplied with clamp kits, top bead, and spanner
- Durable for both indoor and outdoor use, with integrated drainage
Typical Uses
- The Eazyfit Channel Side Fix Kit Black is widely used for:
- Outdoor glass balustrades for balconies and terraces
- Glass balcony railings in residential and light commercial projects
- Juliet balconies requiring a minimalist frameless look
- Stair balustrades in modern interiors
- Decking balustrades for gardens and patios
- Partitioning panels in commercial and residential buildings
NBS Specification
FAQ
What glass thickness can the Eazyfit Channel Side Fix Kit Black support?
The system is compatible with 12mm up to 25.5mm glass panels, making it suitable for a wide variety of balustrade and partition applications.
What load ratings are achievable with this system?
The channel supports loading from 0.36kN up to 1.5kN, depending on glass type and installation. This range ensures compliance with BS 6180 for most domestic and light commercial balustrade projects.
Can the system be installed from one side only?
Yes. The side-fix design allows full installation from the accessible side of the balcony or deck, ideal for elevated areas where back access is not possible.
Is the black finish durable for outdoor use?
The black powder-coated finish provides both a modern aesthetic and long-term durability. It is suitable for exterior applications, though for marine or coastal environments, additional corrosion protection may be required.
What glass types can be used with this kit?
The channel is compatible with toughened glass, toughened laminated glass, and frosted glass, offering flexibility for safety, structural integrity, and design.
What is included in the kit?
Each kit contains the channel, adjustable clamp kits, top bead, and a spanner for assembly. Accessories such as handrails and end caps can be supplied separately.
Does the channel include drainage features?
Yes. The system has integrated drainage holes, making it suitable for outdoor use and preventing water build-up inside the channel.
Do I need a professional installer for this system?
Yes. While the system is designed for fast and straightforward installation, it must be installed by a competent professional to ensure compliance with UK building regulations and long-term safety.
